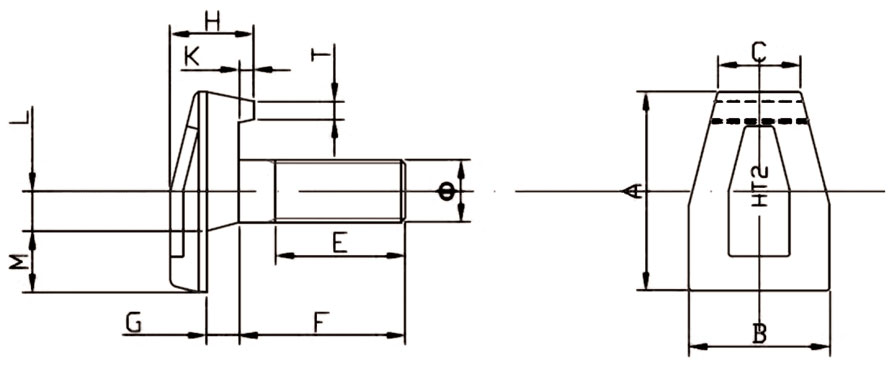

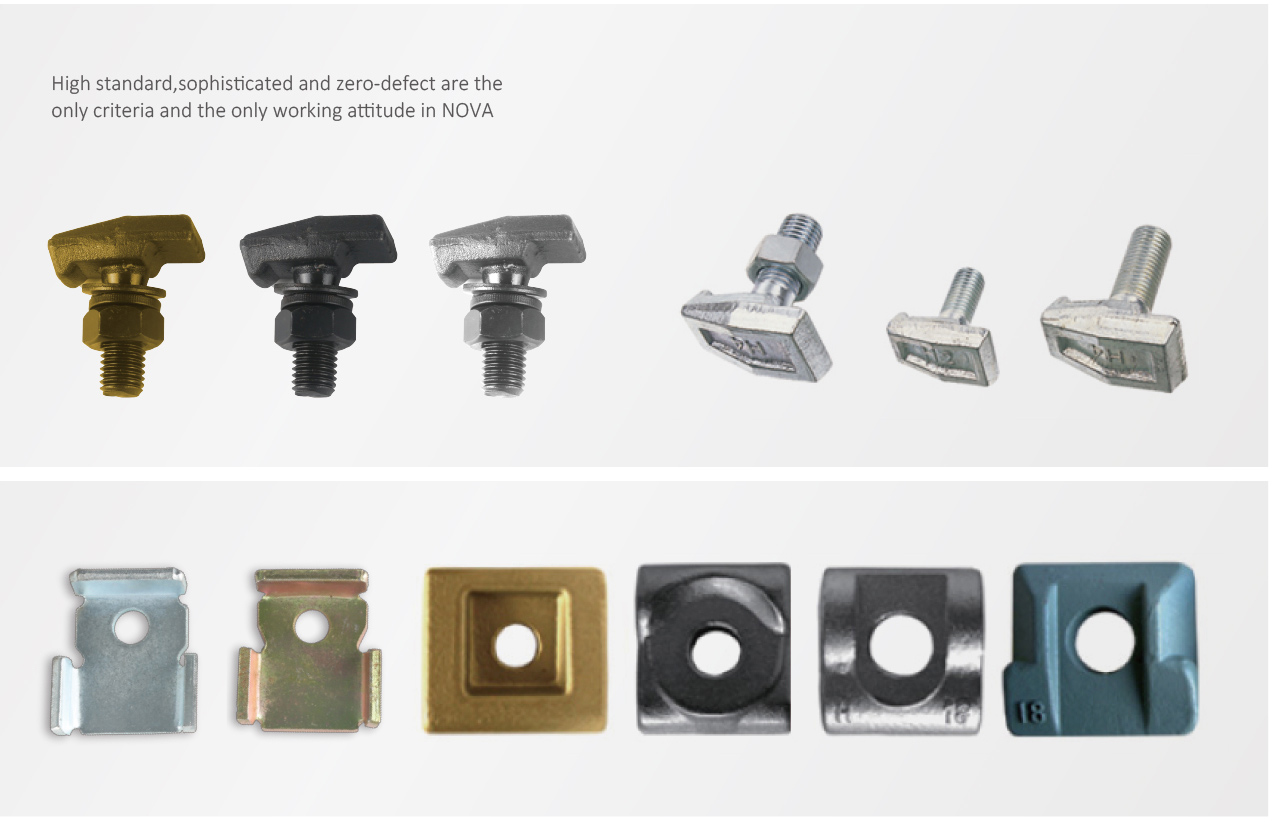

RAIL CLIP

Forged Rigid Guide Rail Clamping System. Recommended For Application Where Guide Rail Stack Movement Is Not Expected.

Dimensions

Type	Applicable Guide Rail Model	Φ	A	B	C	E	F	G	H	K	L	M	T
		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
			±1.3	±1.3	±1.3	+2.5/0	±1.5	±0.8	±1.0	±0.5	±0.8	±1.0	±0.5
T1	T45/A, T50/A	M10	32	22	15	19	25	3.5	12	2	5	11	3
T2	T70-1/B, T75-3/B, T78/B	M12	39	26	19	22	30	4.3	15	3	6.5	13	4
T3	T82/B, T89/B, T90/B	M14	45	29	21	28	38	5.5	18.5	4	8	13	4
T4	T114/B, T127-1/B, T127-2/B	M16	50	34	22	34	44	6.5	20.5	4	8.5	15	5
T5	T140-1/B, T140-2/B	M18	55	37	23	35	46	9	23	4	11	17	5

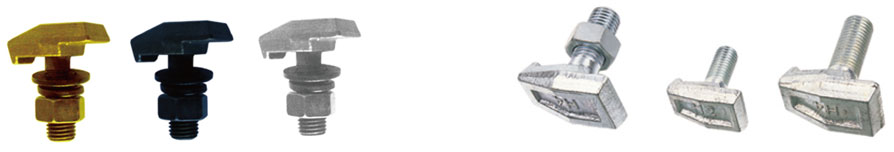

Note: T type forged clips are made exactly according to customers' design, which are suitable for T45/A to T140 Rail etc. Each full set of T type clips include four parts: T Bolt, Nut, Plain Washer and Lock Washer, and its finish options include plain (self colored), galvanized or zinc plated. Product threading can be offered in UNC, UNF or metric.

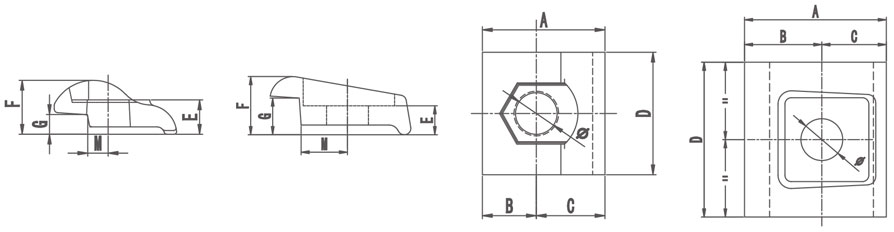

FORGED(CASTING) RAIL CLIP

Type	Designation	Dimensions(mm)
Type	Designation	A	B	C	D	E	F	G	M	Φ	Bolt
NV75	T75-3/B	30	15	15	30	10.5	15	4.5	3	9	M8
NV89	T89/B	32	16	16	38	11	16	5	6	13	M12
NV90	T90/B	32	16	16	38	11	16	5	6	13	M12
NV114	T114/B	50	22	28	50	14	22	5	7.5	17	M16
NV1271	T127-1/B	50	22	28	50	14	22	5	7.5	17	M16
NV1272	T127-2/B	50	22	28	50	17	25	8	8	17	M16
NV1401	T140-1/B	50	22	28	50	17	25	8	8	17	M16
NV1402	T140-2/B	70	38	32	65	16	25.5	12.5	24	20.5	M18
NV1403	T140-3/B	70	38	32	76	19	28.5	19	24	20.5	M18

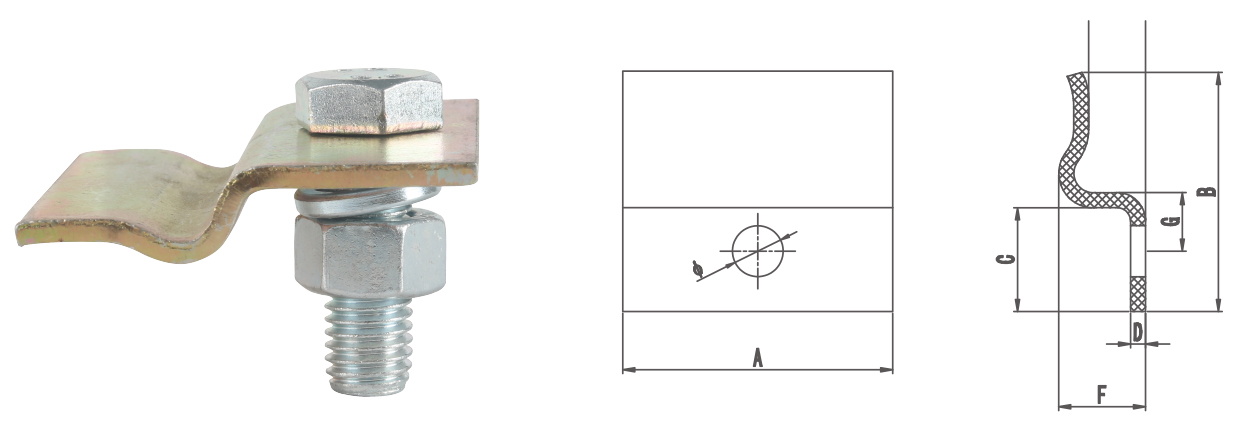

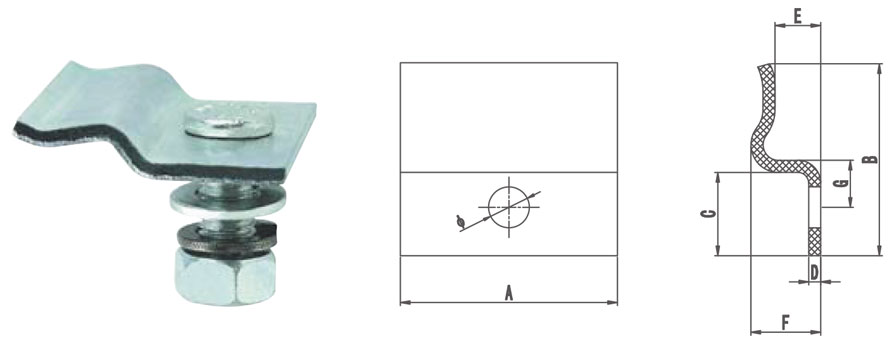

SLIDING RAIL CLIP

Type	Designation	Dimensions(mm)
Type	Designation	A	B	C	D	E	F	G	-	Φ	Bolt
NV-SL1	T89/B	76	70	31	5	9	14.5	18.5	-	13	M12
NV-SL1	T90/B	76	70	31	5	9	14.5	18.5	-	13	M12
NV-SL2	T114/B	76	70	31	5	9	14.5	18.5	-	17.5	M16
NV-SL2	T127-1/B	76	70	31	5	9	14.5	18.5	-	17.5	M16
NV-SL3	T127-2/B	76	70	33	5	14.5	20.5	19	-	17.5	M16
	T140-1/B	76	70	33	5	14.5	20.5	19	-	17.5	M16
	T140-2/B	76	70	33	5	14.5	20.5	19	-	17.5	M16
