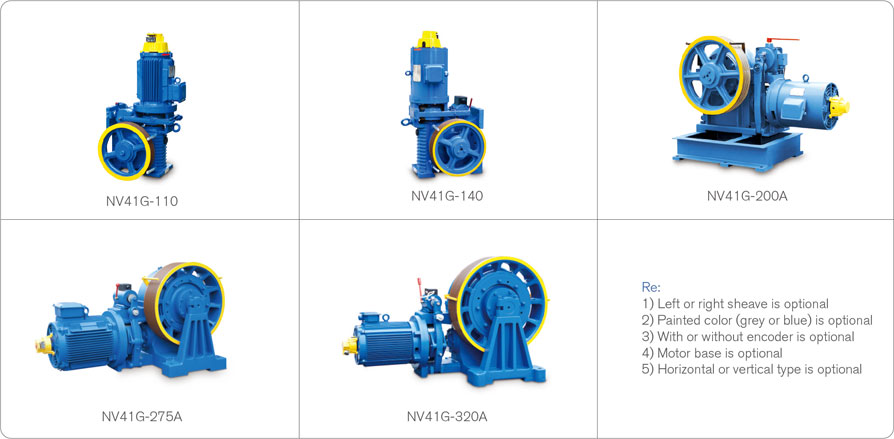

GEARED TRACTION MACHINE
380VAC, 220VAC is optional

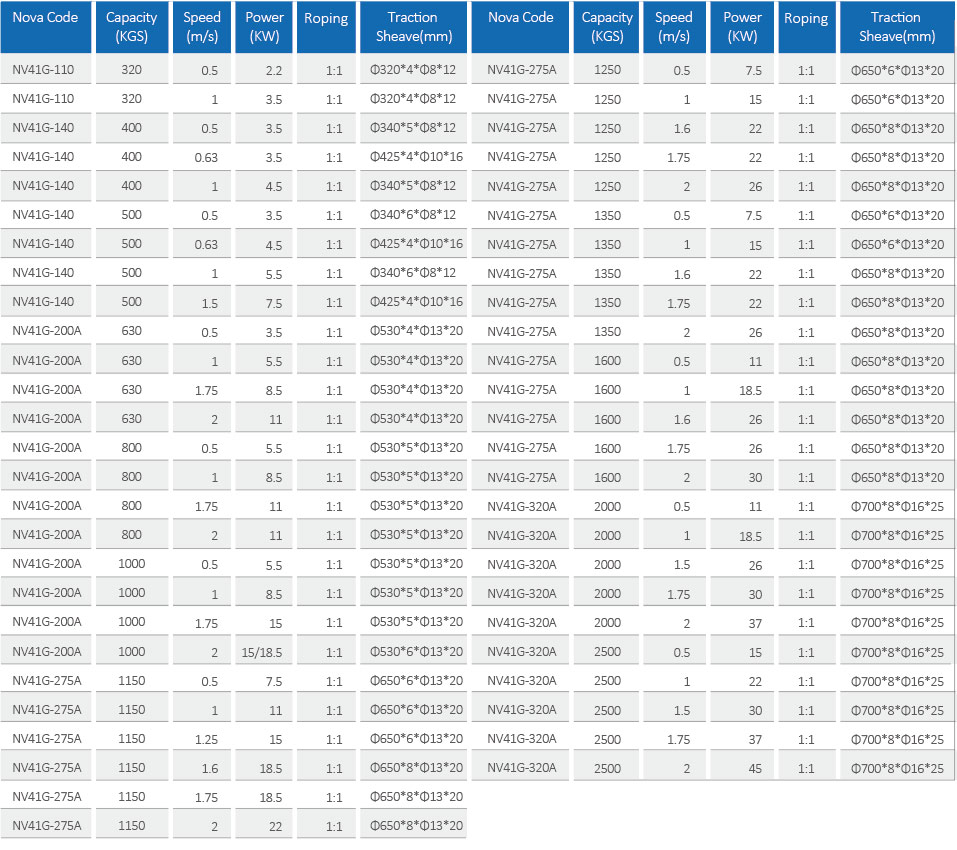

| Nova Code | Capacity(KGS) | Speed(m/s) | Power(KW) | Traction Sheave(mm) |
| NV41G-110 | 320 | 0.5 | 2.2 | Φ320*4*Φ8*12 |
| 1 | 3.5 | |||
| NV41G-140 | 400 | 0.5 | 3.5 | Φ340*5*Φ8*12 |
| 0.63 | 3.5 | Φ425*4*Φ10*16 | ||
| 1 | 4.5 | Φ340*5*Φ8*12 | ||
| 500 | 0.5 | 3.5 | Φ340*6*Φ8*12 | |
| 0.63 | 4.5 | Φ425*4*Φ10*16 | ||
| 1 | 5.5 | Φ340*6*Φ8*12 | ||
| 1.5 | 7.5 | Φ425*4*Φ10*16 | ||
| NV41G-200A | 630 | 0.5 | 3.5 | Φ530*4*Φ13*20 |
| 1 | 5.5 | |||
| 1.75 | 8.5 | |||
| 2 | 11 | |||
| 800 | 0.5 | 5.5 | Φ530*5*Φ13*20 | |
| 1 | 8.5 | |||
| 1.75 | 11 | |||
| 2 | 11 | |||
| 1000 | 0.5 | 5.5 | ||
| 1 | 8.5 | |||
| 1.75 | 15 | |||
| 2 | 15 | Φ530*6*Φ13*20 | ||
| NV41G-275A | 1150 | 0.5 | 7.5 | Φ650*6*Φ13*20 |
| 1 | 11 | |||
| 1.25 | 15 | |||
| 1.6 | 18.5 | Φ650*8*Φ13*20 | ||
| 1.75 | 18.5 | |||
| 2 | 22 | |||
| 1250 | 0.5 | 7.5 | Φ650*6*Φ13*20 | |
| 1 | 15 | |||
| 1.6 | 22 | Φ650*8*Φ13*20 | ||
| 1.75 | 22 | |||
| 2 | 26 | |||
| 1350 | 0.5 | 7.5 | Φ650*6*Φ13*20 | |
| 1 | 15 | |||
| 1.6 | 22 | Φ650*8*Φ13*20 | ||
| 1.75 | 22 | |||
| 2 | 26 | |||
| 1600 | 0.5 | 11 | Φ650*8*Φ13*20 | |
| 1 | 18.5 | |||
| 1.6 | 26 | |||
| 1.75 | 26 | |||
| 2 | 30 | |||
| NV41G-320A | 2000 | 0.5 | 11 | Φ700*8*Φ16*25 |
| 1 | 18.5 | |||
| 1.5 | 26 | |||
| 1.75 | 30 | |||
| 2 | 37 | |||
| 2500 | 0.5 | 15 | ||
| 1 | 22 | |||
| 1.5 | 30 | |||
| 1.75 | 37 | |||
| 2 | 45 |
