BUFFER

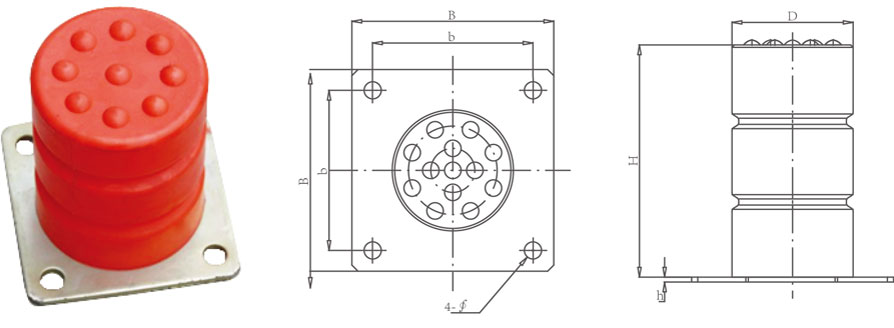

Rubber Buffer

Model
Maximum Compression stroke(mm)
Specification(ΦD×H)
Load Capacity P+Q(kg)
Mounting Dimensions
Naminal Velocity
Bbh≤1.0m/s
NV54-A-0170Φ65×80200~12009565412≤1.0m/s
NV54-A-0270Φ80×80200~120010880412≤1.0m/s
NV54-A-0384Φ80×100200~200010880412≤1.0m/s
NV54-A-04121Φ80×128200~200010880412≤1.0m/s
NV54-A-0572Φ100×80500~200012896414≤1.0m/s
NV54-A-0688Φ100×100500~220012896414≤1.0m/s
NV54-A-07108Φ100×120500~250012896414≤1.0m/s
NV54-A-08144Φ100×160500~300012896414≤1.0m/s
NV54-A-09177Φ100×200500~260012896414≤1.0m/s
NV54-A-1090Φ120×100500~3000160126414≤1.0m/s
NV54-A-11178Φ120×1921000~3500160126414≤1.0m/s
NV54-A-12127Φ130×150800~4800160126414≤1.0m/s
NV54-A-13184Φ130×2001000~4200160126414≤1.0m/s
NV54-A-14108Φ140×120500~3000160126414≤1.0m/s
NV54-A-15162Φ150×1801800~4000200156414≤1.0m/s
NV54-A-16199Φ150×2401000~4500200156414≤1.0m/s
NV54-A-17185Φ160×2001800~5800200156414≤1.0m/s
NV54-A-18144Φ200×1601800~6000246196416≤1.0m/s
NV54-A-19182Φ200×2001800~7500246196416≤1.0m/s
NV54-A-20198Φ200×2201800~7800246196416≤1.0m/s
NV54-A-21225Φ200×2501800~8000246156414≤1.0m/s
NV54-A-22180Φ250×2002000~8000320250418≤1.0m/s
NV54-A-23220Φ250×2502000~8200320250418≤1.0m/s
NV54-A-24299Φ250×3202000~8500320250618≤1.0m/s
NV54-A-25230Φ320×2502000~9000400315622≤1.0m/s

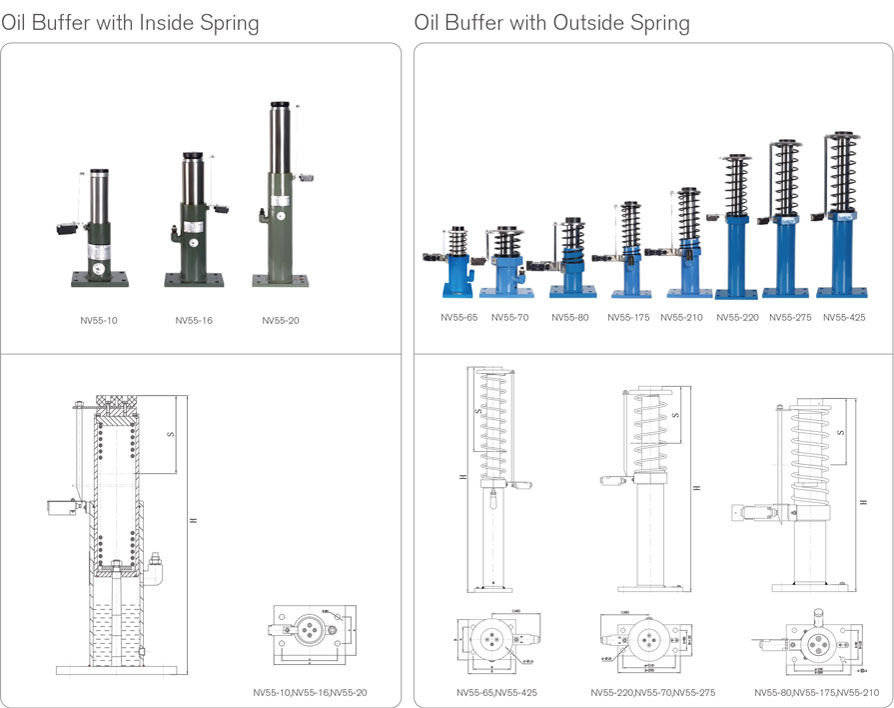

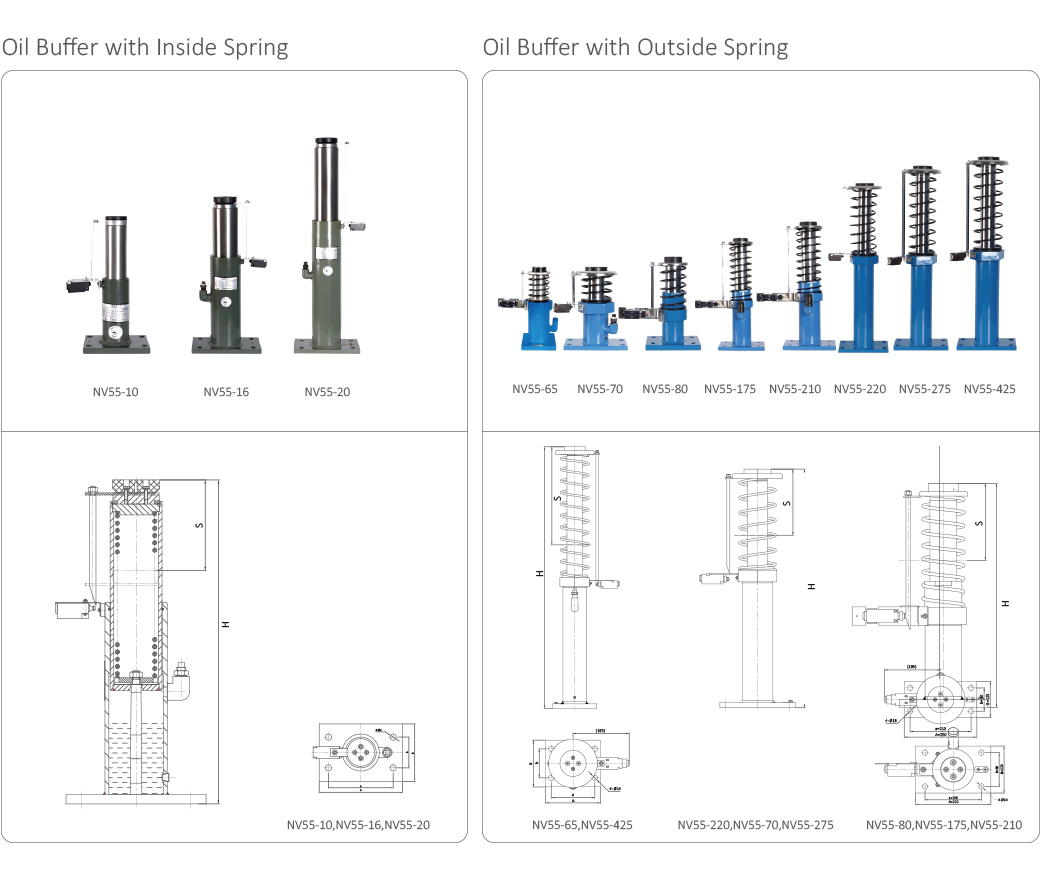

Oil Buffer

Nova Code

Rated Speed

(m/s)

P+Q

(Kg)

Plunger Stroke

(mm)

Free Height

(mm)

a*b

(mm)

A*B

(mm)

Oil Mass

(L)

NV55-10≤1.0300-2500100390150*90180*1250.5
NV55-16≤1.6700-5300175625210*100270*1501.7
NV55-20≤2.01000-5300290915210*100270*1252.6
NV55-65≤0.63500-460065355150*100190*1500.45
NV55-70≤1.0300-250070305210*80250*1250.5
NV55-80≤1.0600-360080315150*90200*1250.35
NV55-175≤1.6600-3600175510150*90200*1250.6
NV55-210
≤1.75600-3600210610150*90200*1250.8
NV55-220≤1.75600-2500220780210*80250*1251.3
NV55-275≤2.0800-3800275790210*80250*1250.8
NV55-425≤2.5750-36004251145150*100190*1602.5
