Nova Elevator is a professional manufacturer of brand-compatible elevator components,Precision MACHINED GUIDE RAIL for elevators. OEM-standard ELEVATOR GUIDE RAIL & T89 GUIDE RAIL. Brand-compatible, ready for replacement/modernization.

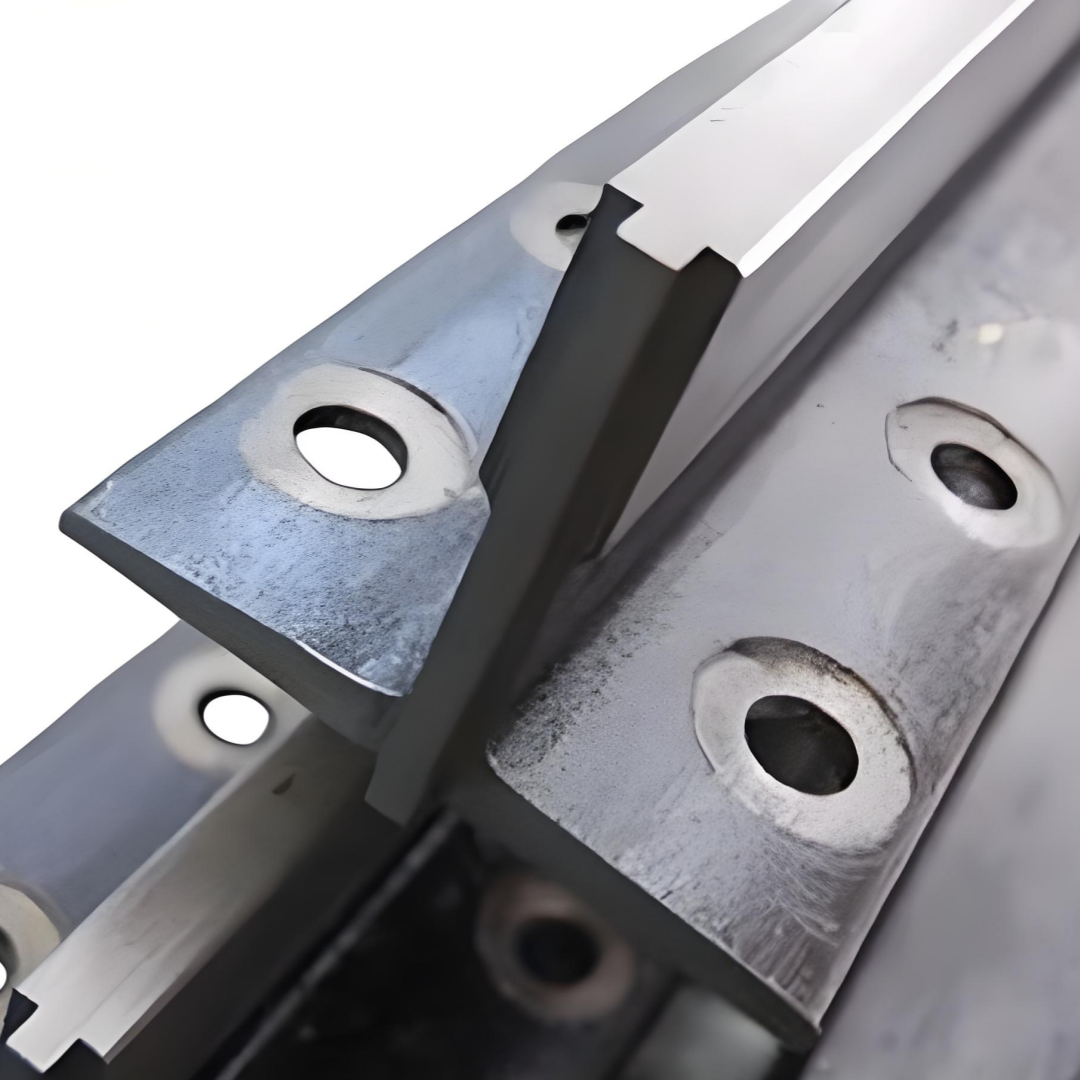

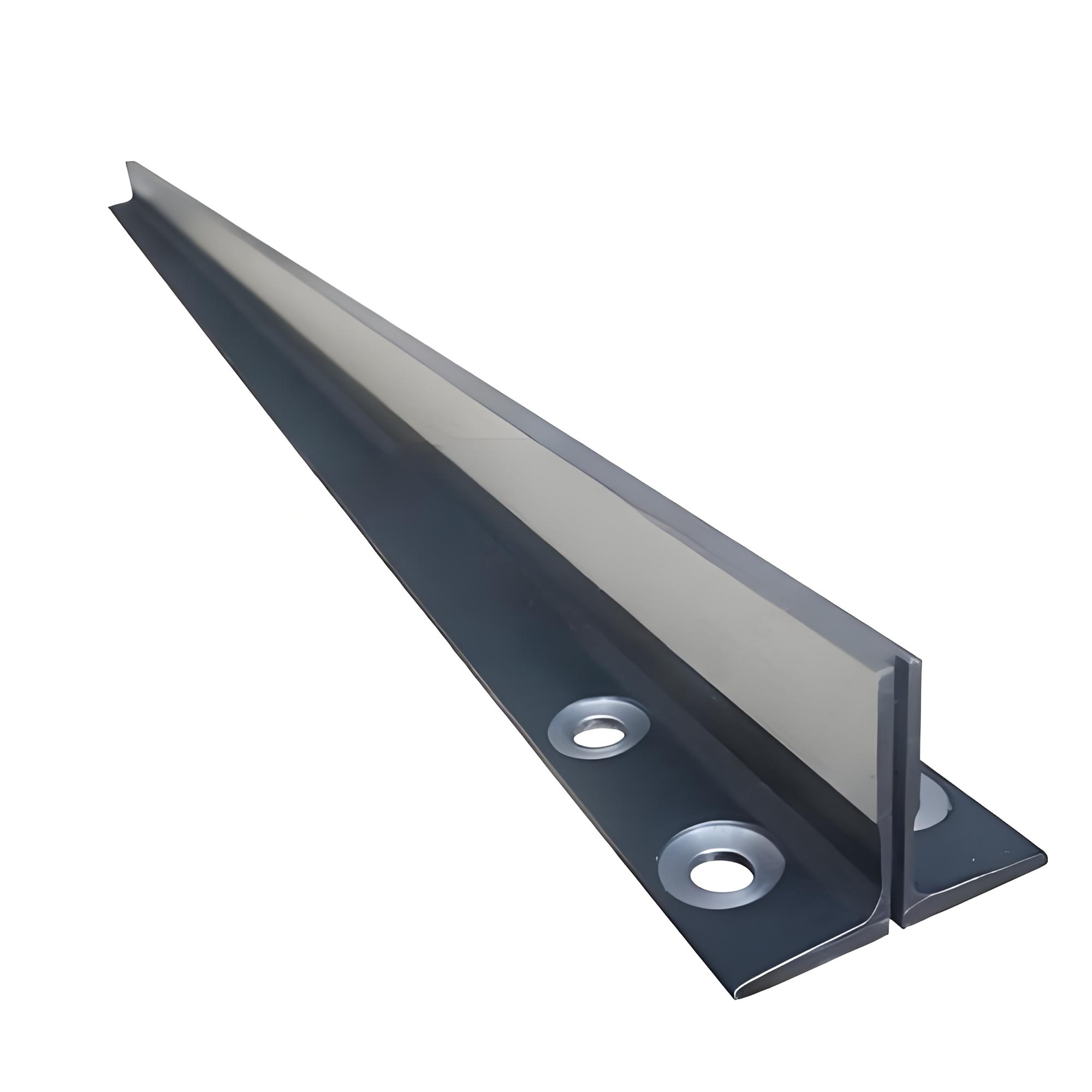

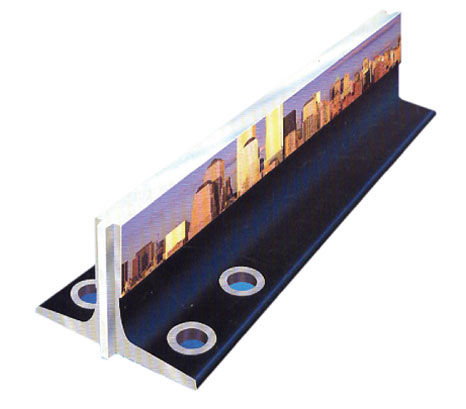

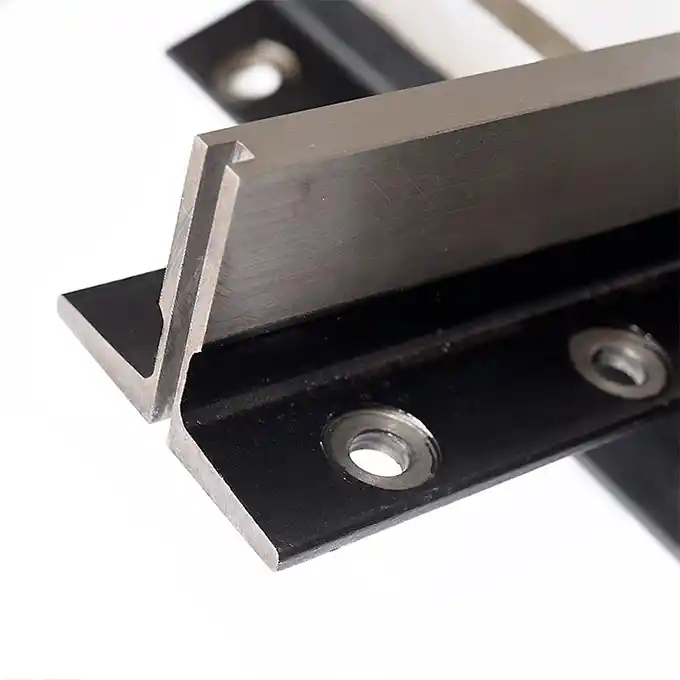

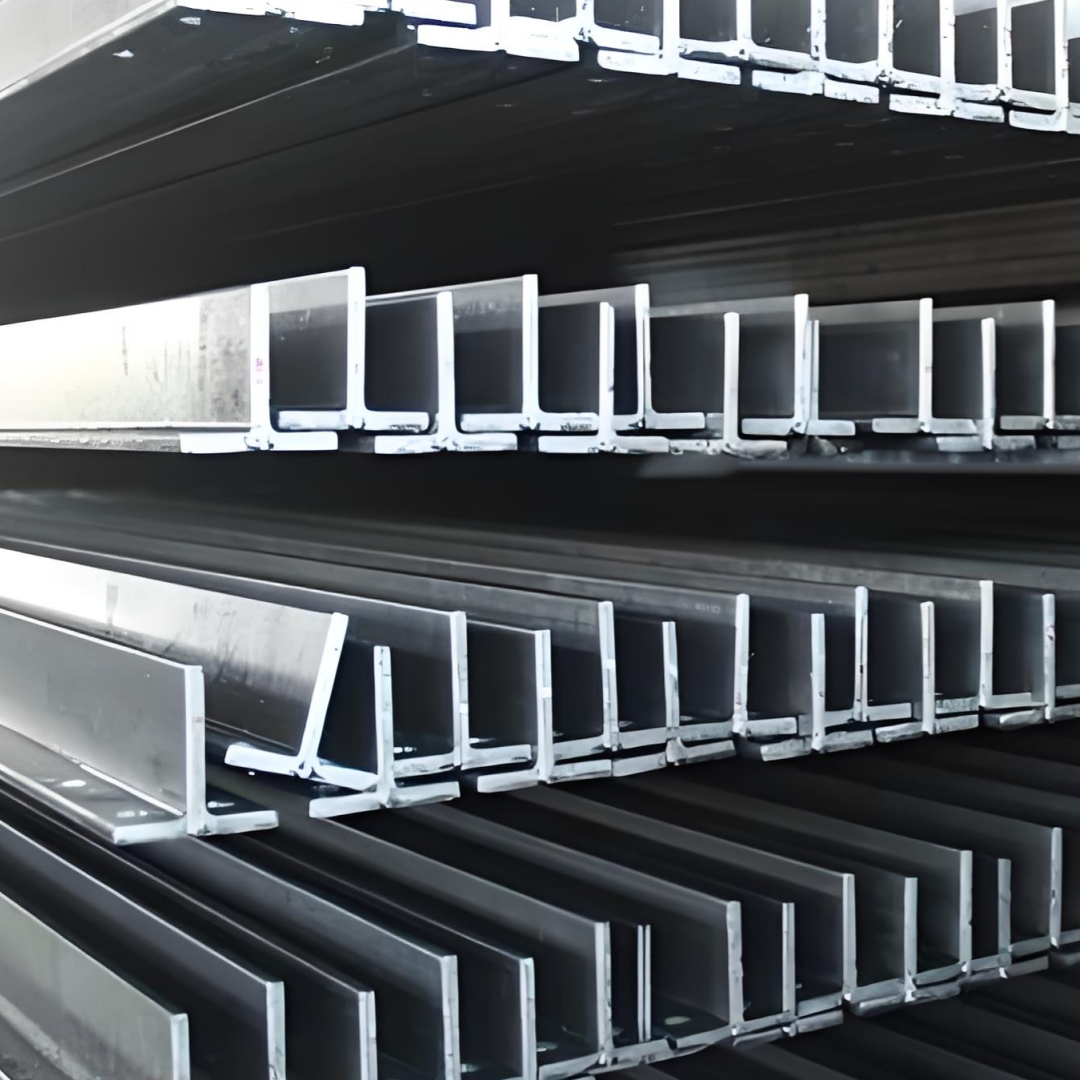

Machined guide rails are high‑precision vertical guiding components installed inside elevator hoistways. Fine‑milled surfaces and strict dimensional tolerances deliver smooth gliding, low vibration and stable car travel. As critical hoistway infrastructure, these rails enhance riding comfort and operational safety, ideal for high‑speed and high‑rise elevator projects.

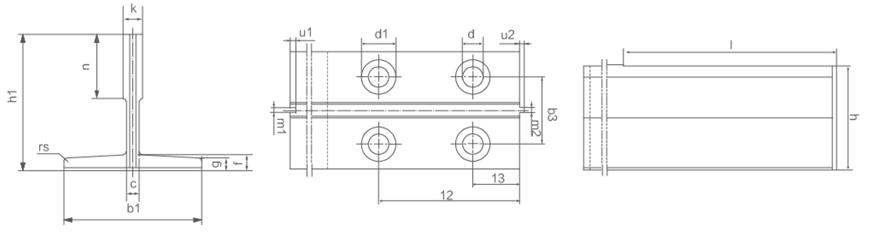

Dimensions
Type | b1 | h1 | k | n | c | f | g | rs | m1 | m2 | u1 | u2 | d | d1 | b3 | l2g | l3g | l | h |
T70-1/B | 70 | 65 | 9 | 34 | 6 | 8 | 6 | 1.5 | 3.00 | 2.97 | 3.50 | 3.00 | 13 | 26 | 42 | 105 | 25 | 128 | 64 |
T75-3/B | 75 | 62 | 10 | 30 | 8 | 9 | 7 | 3 | 3.00 | 2.97 | 3.50 | 3.00 | 13 | 26 | 42 | 105 | 30 | 138 | 61 |
T78/B | 78 | 56 | 10 | 26 | 7 | 8.5 | 6 | 2.5 | 3.00 | 2.97 | 3.50 | 3.00 | 13 | 26 | 42 | 105 | 38 | 138 | 55 |
T82/B | 82 | 68.25 | 9 | 26 | 7.5 | 8.25 | 6 | 3 | 3.00 | 2.97 | 3.50 | 3.00 | 13 | 26 | 50.8 | 81 | 27 | 111 | 66.6 |
T82-3/B | 82 | 62 | 15.88 | 30 | 8 | 8.5 | 6 | 2.5 | 3 | 2.95 | 3.5 | 3 | 13 | 26 | 50 | 114.3 | 38.1 | 156 | 61 |
T89-1/B | 89 | 62 | 15.88 | 33.4 | 8 | 9 | 7 | 3 | 4 | 3.97 | 4.5 | 4 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 | 61 |
T89/B | 89 | 62 | 16 | 34 | 10 | 11.1 | 7.9 | 3 | 6.40 | 6.37 | 7.14 | 6.35 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 | 61 |
T90/B | 90 | 75 | 16 | 42 | 10 | 10 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 | 74 |
T114/B | 114 | 89 | 16 | 38 | 9.5 | 11 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 70 | 114.3 | 38.1 | 156 | 88 |
T127-1/B | 127 | 89 | 16 | 45 | 10 | 11 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 | 88 |
T127-2/B | 127 | 89 | 16 | 51 | 10 | 15.9 | 12.7 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 | 88 |
T140-1/B | 140 | 108 | 19 | 51 | 12.7 | 15.9 | 12.7 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 | 107 |
T140-2/B | 140 | 102 | 28.6 | 51 | 17.5 | 17.5 | 14.5 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 | 101 |
T140-3/B | 140 | 127 | 31.75 | 57 | 19 | 25.4 | 17.5 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 | 126 |
T75 | 75 | 62 | 10 | 30 | 8 | 9 | 7 | 3 | 3.00 | 2.97 | 3.50 | 3.00 | 13 | 26 | 42 | 105 | 25 | 138 | 61 |
T125 | 125 | 82 | 16 | 42 | 10 | 12 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 | 81 |
T70-4 | 70 | 65 | 9 | 30 | 16 | 7 | 5 | 3 | 2.5 | 2.47 | 3 | 3.5 | 13 | 26 | 43 | 90 | 30 | 123 | 64 |
T75-4 | 75 | 62 | 10 | 26 | 6.5 | 8 | 6 | 3 | 2.5 | 2.47 | 3 | 3.5 | 13 | 26 | 43 | 90 | 30 | 123 | 61 |
T82-4 | 82 | 62 | 10 | 28 | 7 | 9 | 7 | 3 | 2.5 | 2.47 | 3 | 3.5 | 13 | 26 | 50 | 81 | 27 | 111 | 61 |
Tolerances | |||||||||||||||||||
B Class | ±1.5 | ±0.75 | +0.10 | +30 | / | ±0.75 | ±0.75 | / | +0.060 | 0-0.06 | ±0.1 | ±0.1 | / | / | ±0.2 | ±0.2 | ±0.2 | +30 | ±0.1 |
BE Class | ±1.5 | ±0.75 | +0.050 | +30 | / | ±0.75 | ±0.75 | / | +0.030 | 0-0.03 | ±0.1 | ±0.1 | / | / | ±0.2 | ±0.2 | ±0.2 | +30 | ±0.05 |
Note: Dimensions l2g, l3g, d, b3, are indentical to and have the same tolerances as fishplate dimensions l2f, l3f, d, b3.
Machined Guide Rail - BE Class
Dimensions and Tolerances of High Precise Machined Guide Rails - ISO7465/GB-T22562/2008 (For Elevator Speed 1.6m/s~4m/s)
Dimensions
Type | b1 | h1 | k | n | c | f | g | rs | m1 | m2 | u1 | u2 | d | d1 | b3 | l2g | l3g | l | h |
Tolerances(High Precise) | ±1.5 | ±0.75 | +0.05/0 | +3/0 | - | ±0.75 | ±0.75 | - | +0.03/0 | 0/-0.03 | ±0.10 | ±0.10 | - | - | ±0.2 | ±0.2 | ±0.2 | +3/0 | ±0.05 |
T89/BE | 89 | 62 | 16 | 34 | 10 | 11.1 | 7.9 | 3 | 6.40 | 6.37 | 7.14 | 6.35 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 | 61 |
T90/BE | 90 | 75 | 16 | 42 | 10 | 10 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 13 | 26 | 57.2 | 114.3 | 38.1 | 156 | 74 |
T114/BE | 114 | 89 | 16 | 38 | 9.5 | 11 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 70 | 114.3 | 38.1 | 156 | 88 |
T127-1/BE | 127 | 89 | 16 | 45 | 10 | 11 | 8 | 4 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 | 88 |
T127-2/BE | 127 | 89 | 16 | 51 | 10 | 15.9 | 12.7 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 17 | 33 | 79.4 | 114.3 | 38.1 | 156 | 88 |
T140-1/BE | 140 | 108 | 19 | 51 | 12.7 | 15.9 | 12.7 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 | 107 |
T140-2/BE | 140 | 102 | 28.6 | 51 | 17.5 | 17.5 | 14.5 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 | 101 |
T140-3/BE | 140 | 127 | 31.75 | 57 | 19 | 25.4 | 17.5 | 5 | 6.40 | 6.37 | 7.14 | 6.35 | 21 | 40 | 92.1 | 152.4 | 31.8 | 193 | 126 |
Note: Dimensions l2g, l3g, d, b3, are indentical to and have the same tolerances as fishplate dimensions l2f, l3f, d, b3.

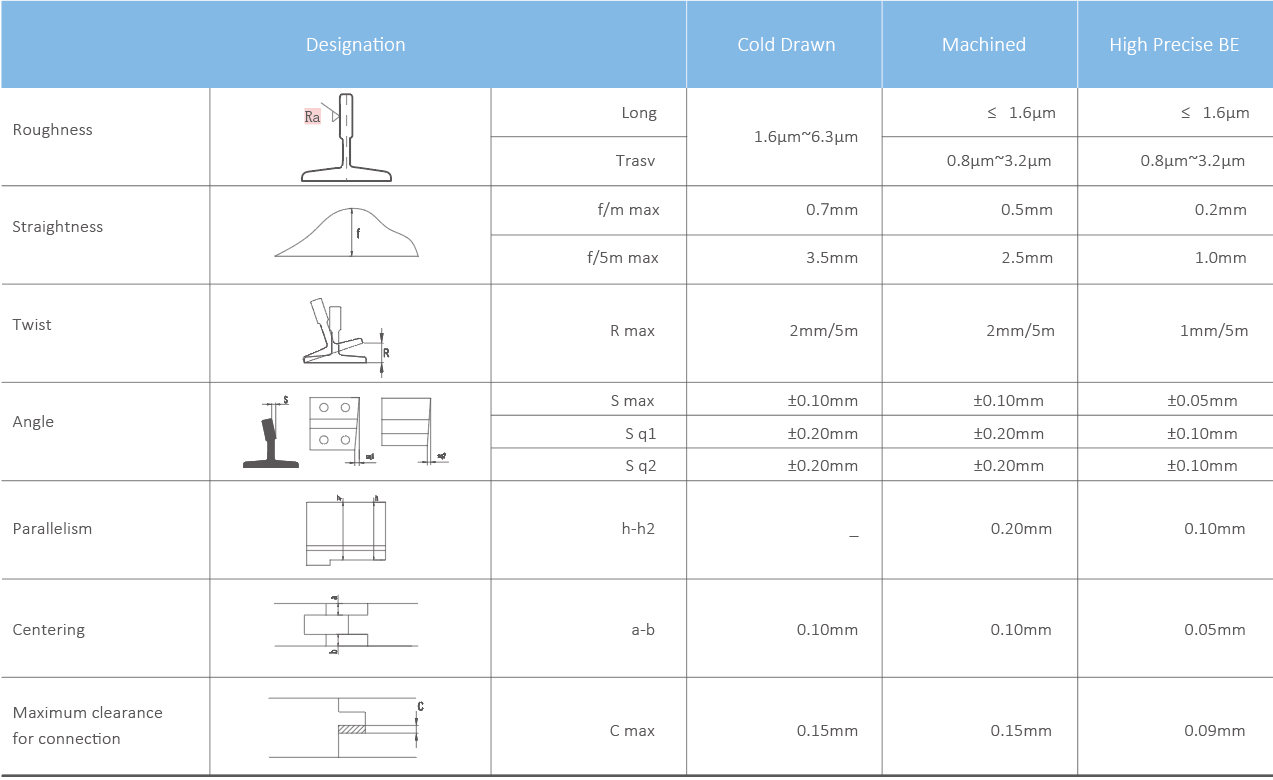

Technical and Mechanical Characteristics -ISO7465/GB-T22562/2008
Technical Characteristics

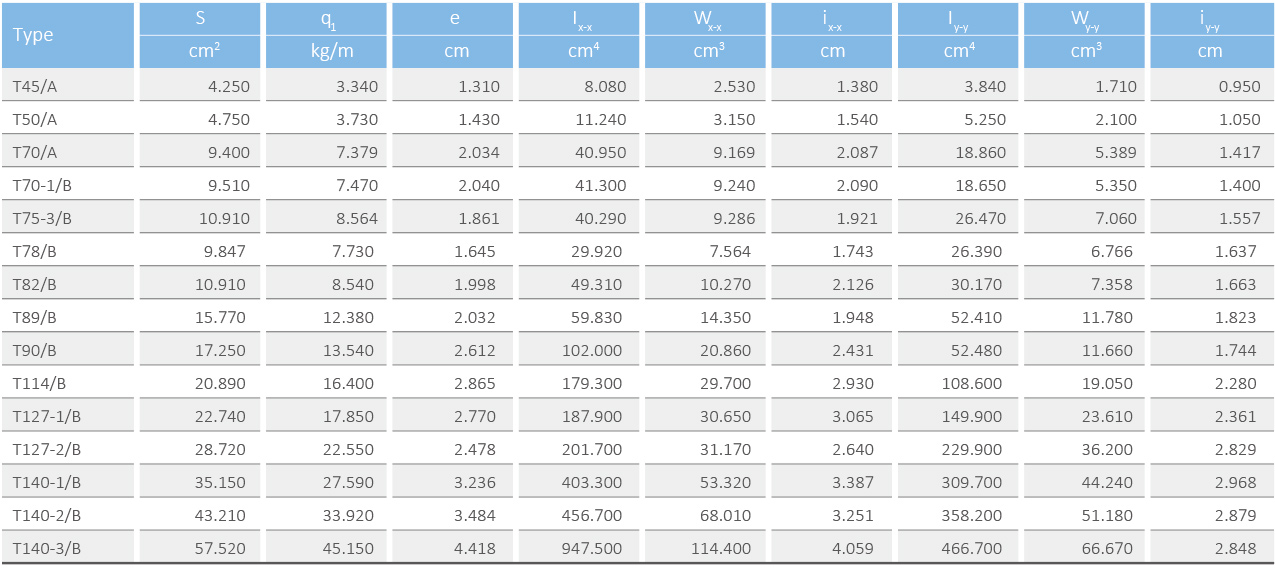

Physical Parameter of NOVA Guide Rail
Key parameter of guide rails
