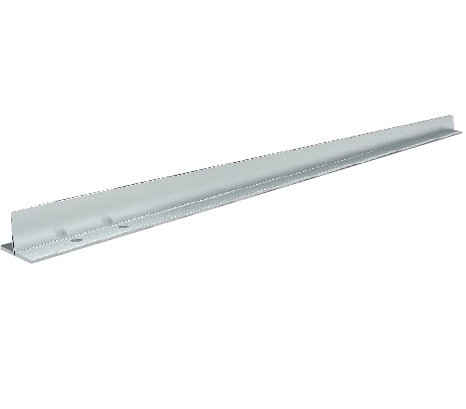

COLD DRAWN GUIDE RAIL
COLD DRAWN GUIDE RAIL
Nova Elevator is a professional manufacturer of brand-compatible elevator components,Precision MACHINED GUIDE RAIL for elevators. OEM-standard ELEVATOR GUIDE RAIL & T89 GUIDE RAIL. Brand-compatible, ready for replacement/modernization.
Dimensions and Tolerances of NOVA Cold Draw Guide Rails-ISO7465/GB-T22562/2008(For Elevator Speed ≤ 1m/s)
Dimensions
| Type | b1 | h1 | k | p | rs | l2g | l3g | d | b3 | n | c | f | g | m1 | m2 | u1 | u2 | d | d1 |

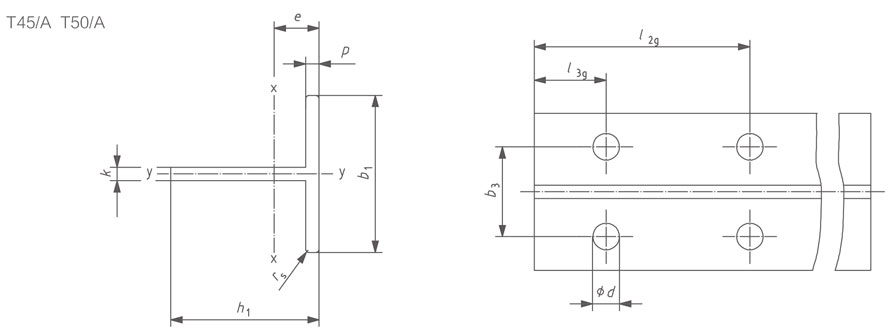

| T45/A | 45 | 45 | 5 | 5 | 1 | 65 | 15 | 9 | 25 | - | - | - | - | - | - | - | - | - | - |
| T50/A | 50 | 50 | 5 | 5 | 1 | 75 | 25 | 9 | 30 | - | - | - | - | - | - | - | - | - | - |
| Tolerances | ±1 | ±0.2 | ±0.15 | ±0.5 | - | ±0.2 | ±0.2 | - | ±0.2 | - | - | - | - | - | - | - | - | - | - |

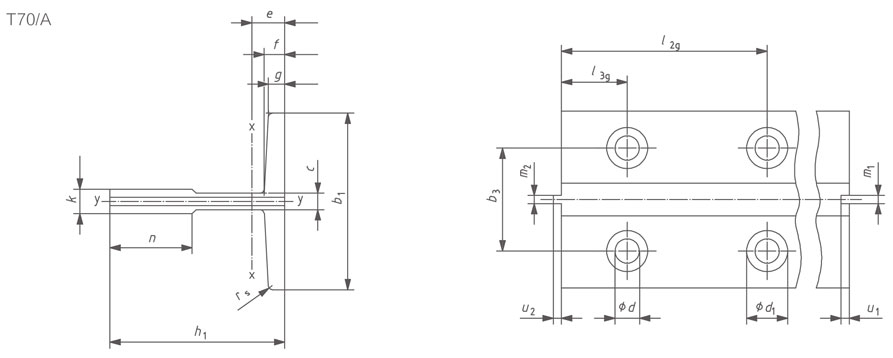

| T70/A | 70 | 65 | 9 | - | 1.5 | 105 | 25 | 9 | 42 | 34 | 6 | 6 | 8 | 3.00 | 2.97 | 3.50 | 3.00 | 13 | 26 |
| Tolerances | ±1 | ±0.1 | +0.1/0 | - | - | ±0.2 | ±0.2 | - | ±0.2 | +3/0 | - | ±0.75 | ±0.75 | - | +0.06/0 | 0/-0.06 | ±0.01 | - | - |
Note: Dimensions l2g, l3g, d, b3, are indentical to and have the same tolerances as fishplate dimensions l2f, l3f, d, b3.
